Teammachine SLR01
Disc 車架組 MY20


建議售價:155,000元

*已完售車款

查看銷售地點

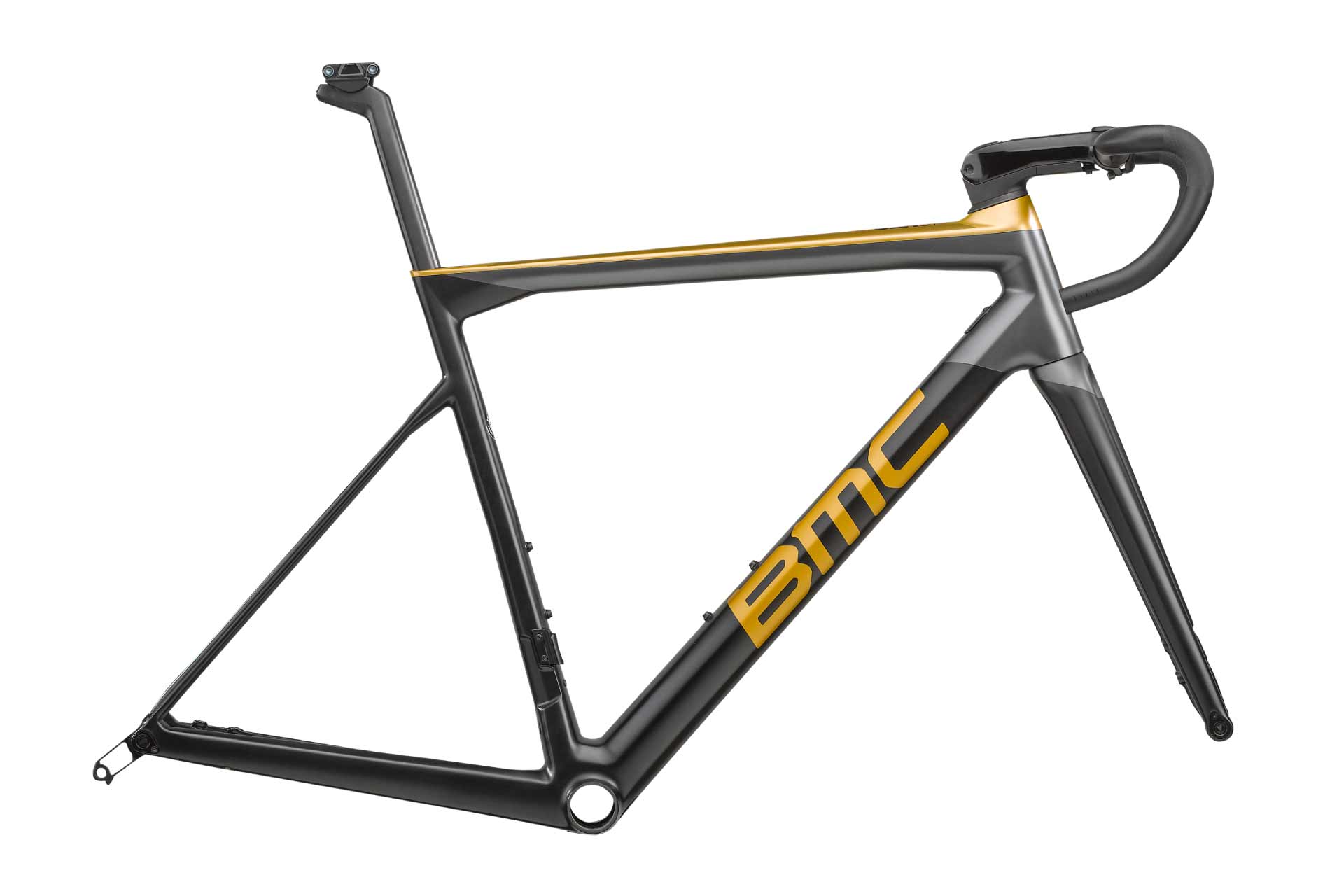

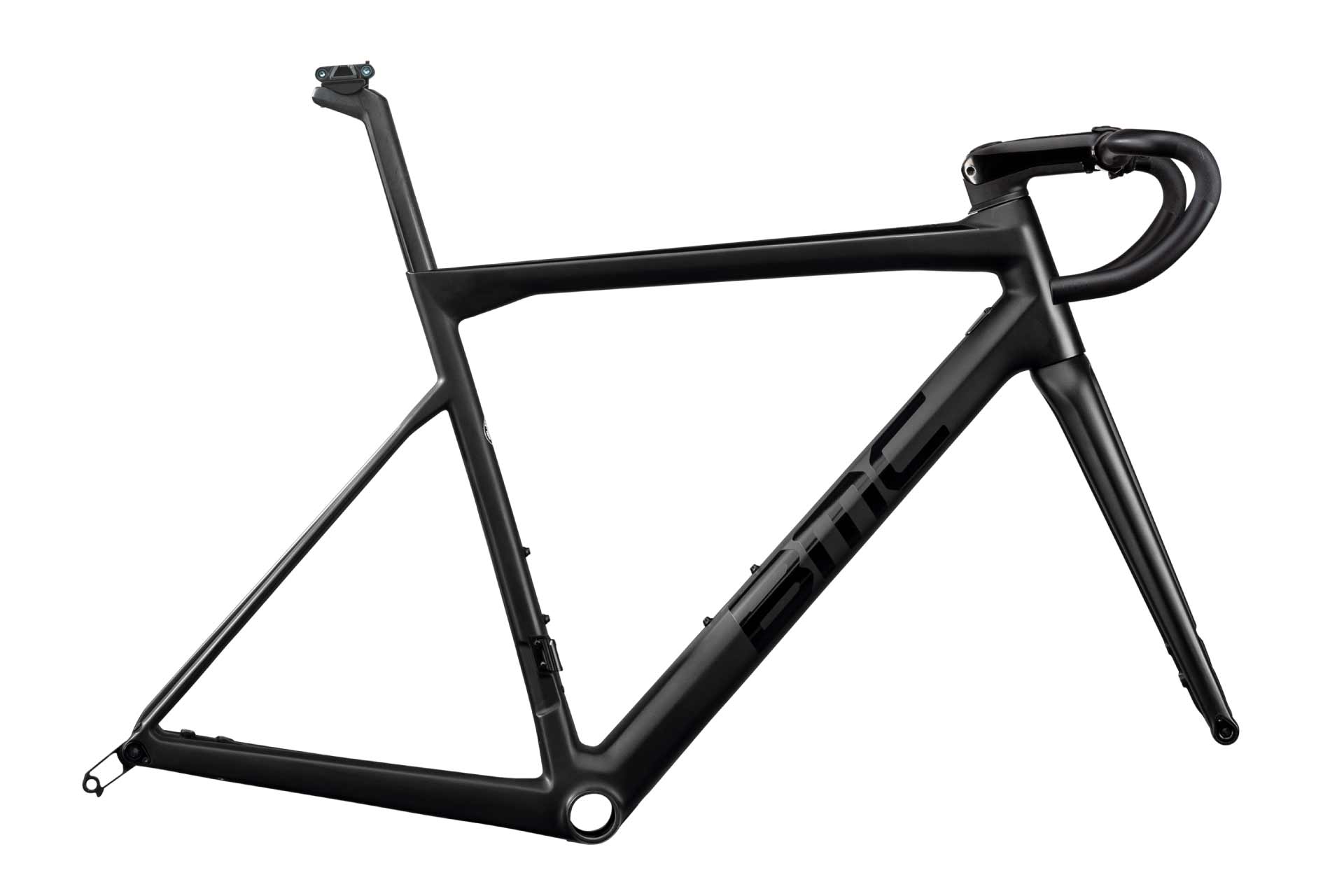

塗裝:Distant Blue&Neon Red塗裝:Carbon&Gold塗裝:Stealth

極致競賽機器

2018全新改款,BMC極致競賽機器Teammachine SLR01,擁有環法賽事總冠軍、世界錦標賽冠軍、奧運金牌以及世界總排第一頭銜。 BMC為市面上少數擁有自家R&D,設計與研發能力的品牌,利用ACE技術運算了52,000次車架原型,將極致競賽機器再進化。

產品說明

夾器安裝孔位改為Shimano direct-mount系統;全新的隱藏式座管契除讓外觀簡潔,同時更有效達到濾震效果,下管走線部分則提供了Di2 Junction的整合式孔位,俐落且完美的保護電子組件。

960-540-SLR-DISC-8

隨貨附贈:

• D型碳纖維座管
• BMC 把手
• BMC 龍頭
• Fizik 握把帶

* 實際附贈品依產品包裝內為主

Specification

規格

車架
Teammachine SLR01, PF86 bottom bracket, Flat Mount, 12x142mm thru-axle
管材
01 Premium Carbon, ACE Technology, TCC Race
尺寸
尺寸
47 / 51 / 54 / 56 / 58 / 61 cm
前叉
Teammachine SLR 01 Premium Carbon Disc, TCC Race, Integrated Cockpit, Flat Mount, 12x100mm thru-axle
車把手
BMC RCB01 Carbon, ICS Optimized Routing, ergo top shape, compact bend, including bartape
icon15
龍頭
BMC ICS 01 - Integrated Cockpit Design, w/ computer and camera mount
坐管
坐管
Teammachine SLR01 "D" Premium Carbon, 15mm offset
顏色
顏色
Distant Blue&Neon Red / Carbon&Gold / Stealth
其他
其它
黑色塗裝含貼紙包

Geometry

幾何

Size475154565861
Rider Height<166166-174172-180178-186184-192>190
Stack506530550565584608
Reach367377386392401409
Seat Tube (st)423468513534554584
Top Tube (tt')517535550560575590
Head Tube (ht)113133153168188213
Seat Angle (sa)73.573.573.573.573.573.5
Head Angle (ha)70.57272.572.572.572.5
Rear Center (rc)410410410410410410
Front Center (fc)570575587596611627
Wheelbase (wb)97097598699610121027
BB Drop696969696969
Fork Length (fl)365365365365365365
Fork Rake (fr)41.641.641.641.641.641.6
Trail766663636363
Crank Length170170172.5172.5172.5175
Stem Length90100110120120120
Stem Angle-12.5°-12.5°-12.5°-12.5°-12.5°-12.5°
Bar Width400420420420440440
Bar Drop123123123123123123
Bar Reach777777777777
Post Length300300330330330330
Post Offset151515151515
Standover Height726754779797814843
*原廠保留規格修改權利
