Specification
規格

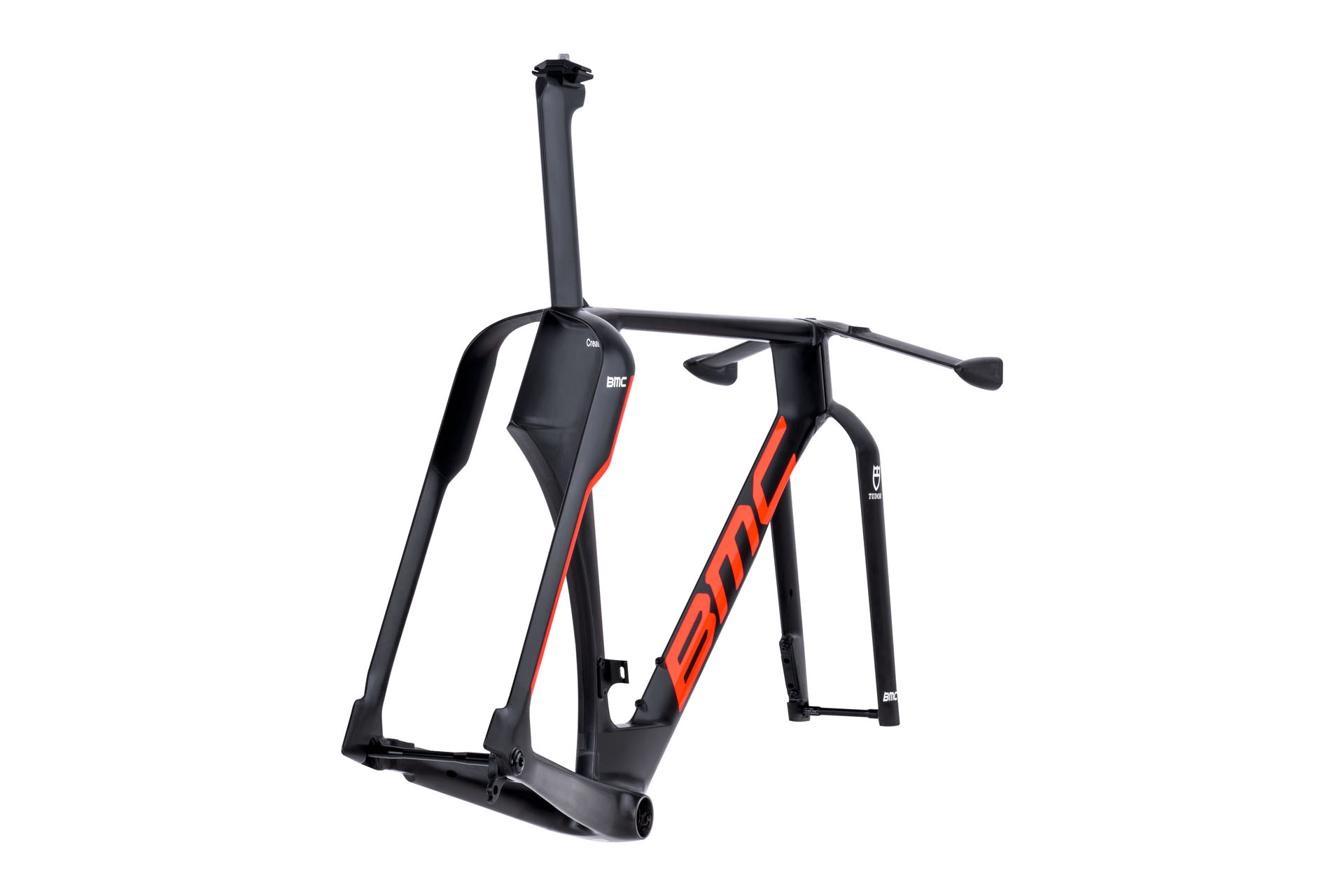

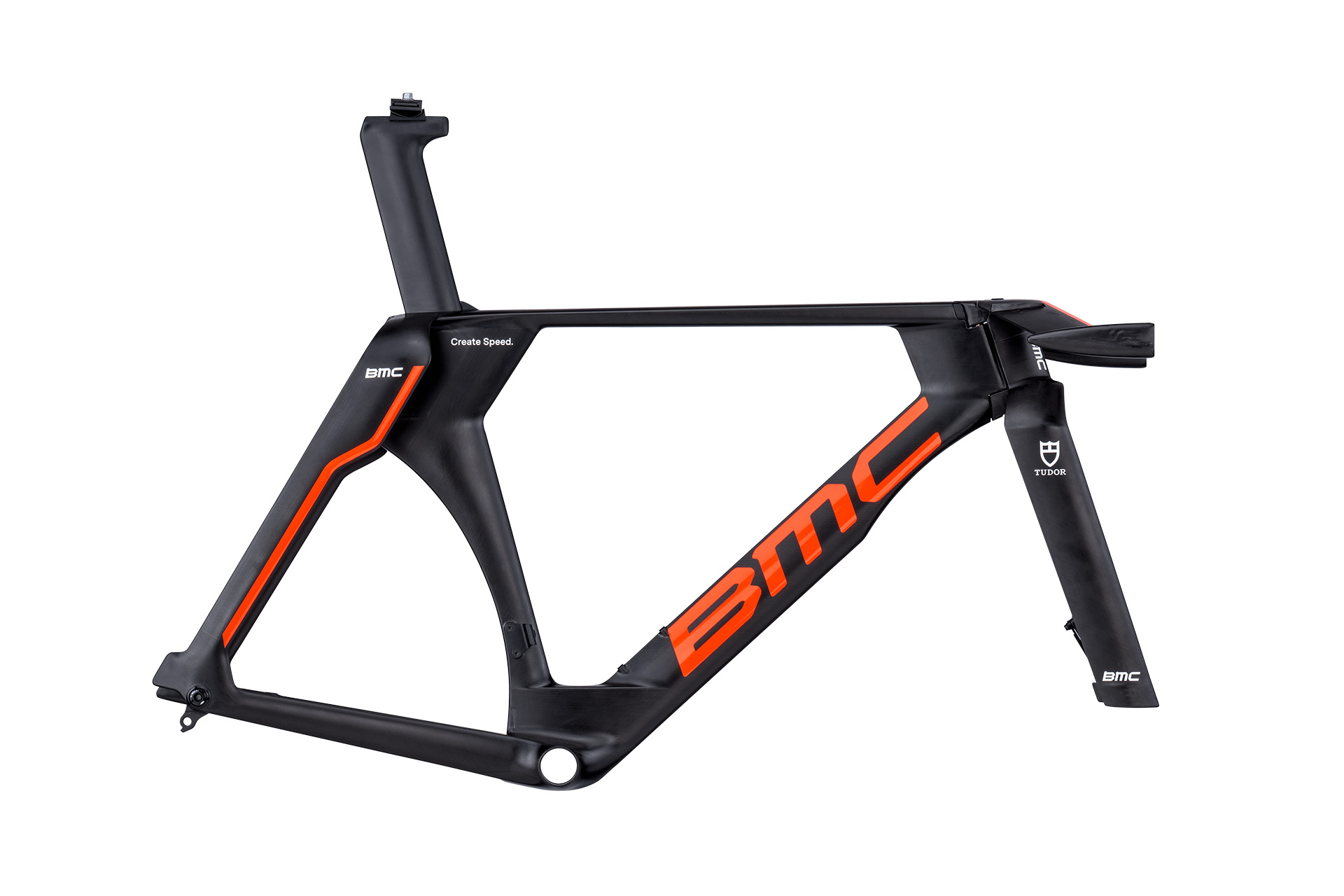

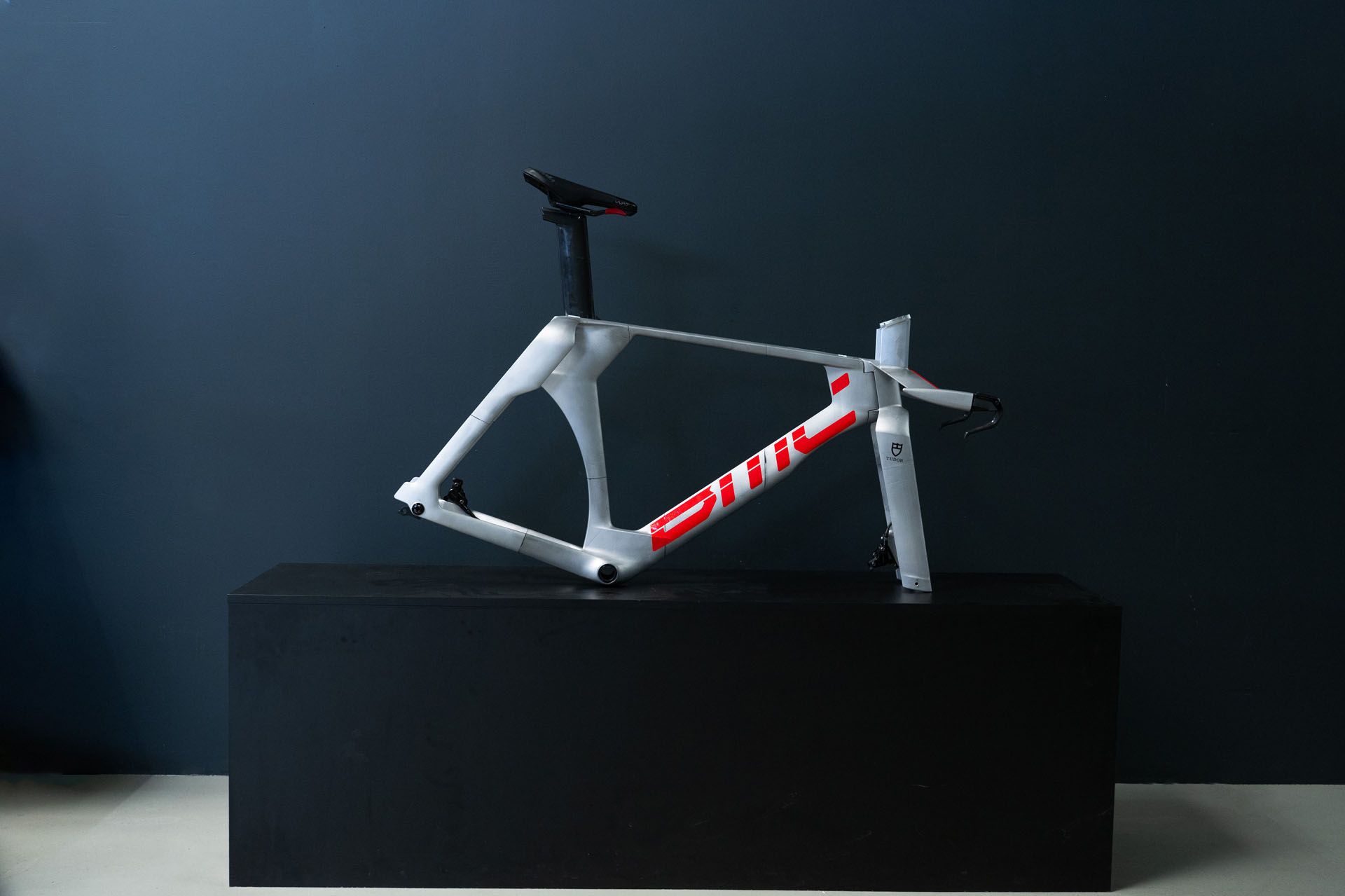

車架
Timemachine Mpc. | Mpc. Premium Carbon | Full Mount - UDH | Flat Mount Disc | Bottle cage compatible | 142x12mm Thru-Axle
管材
Mpc. Premium Carbon
尺寸
S / M-L

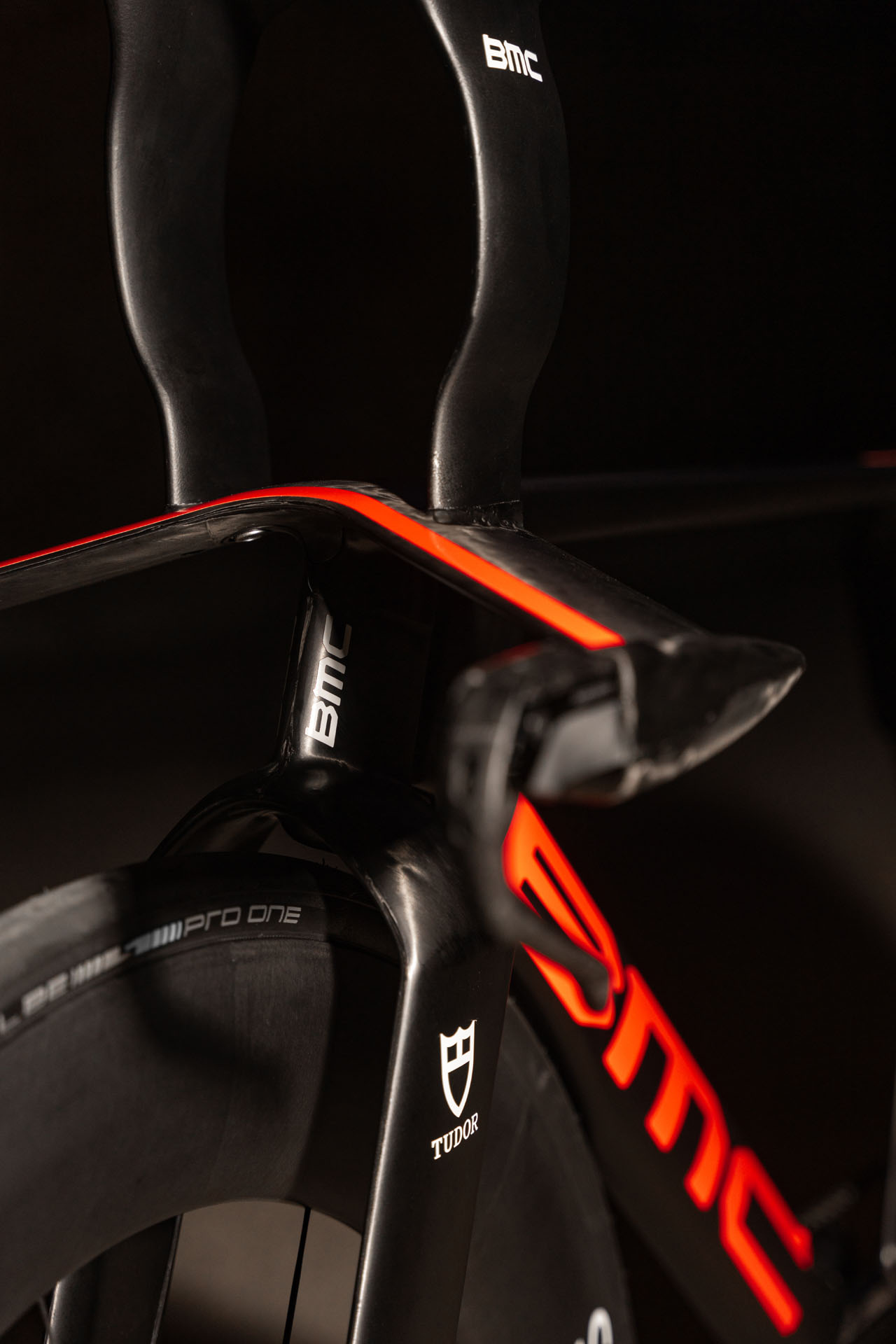

前叉

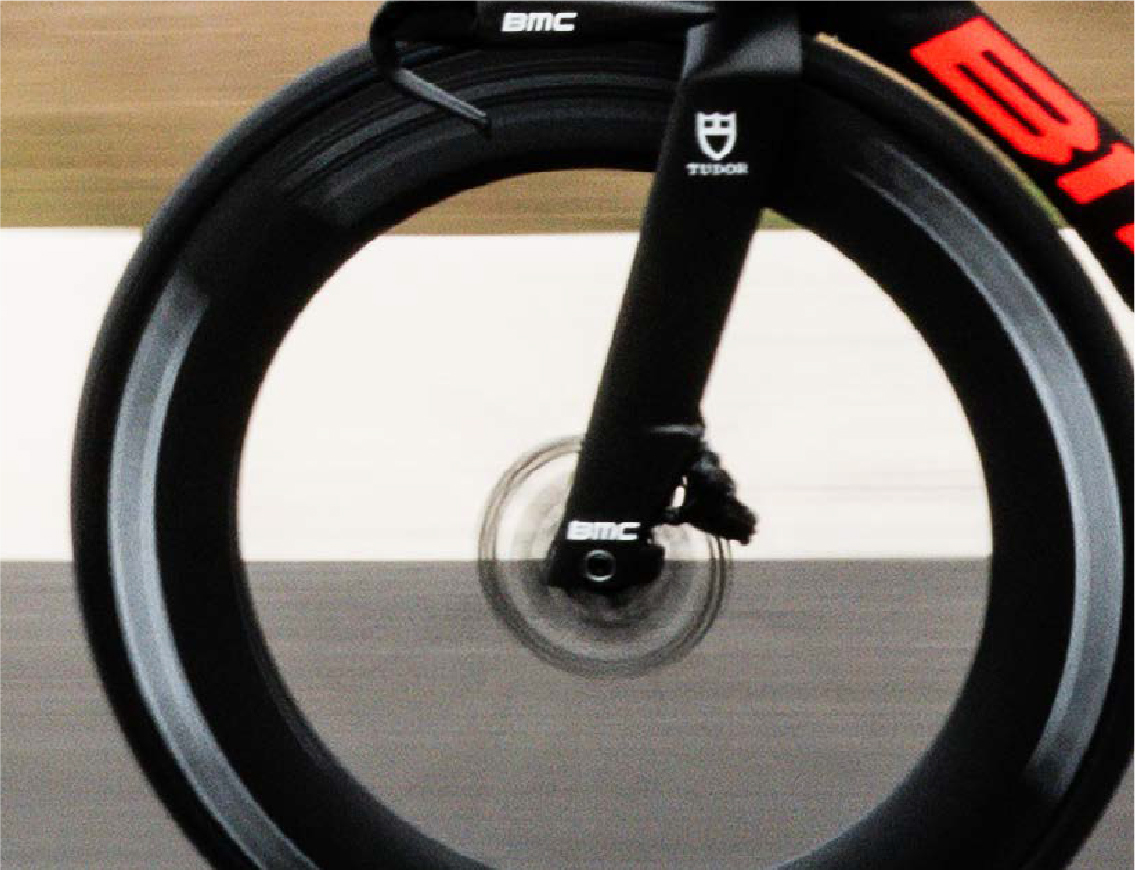

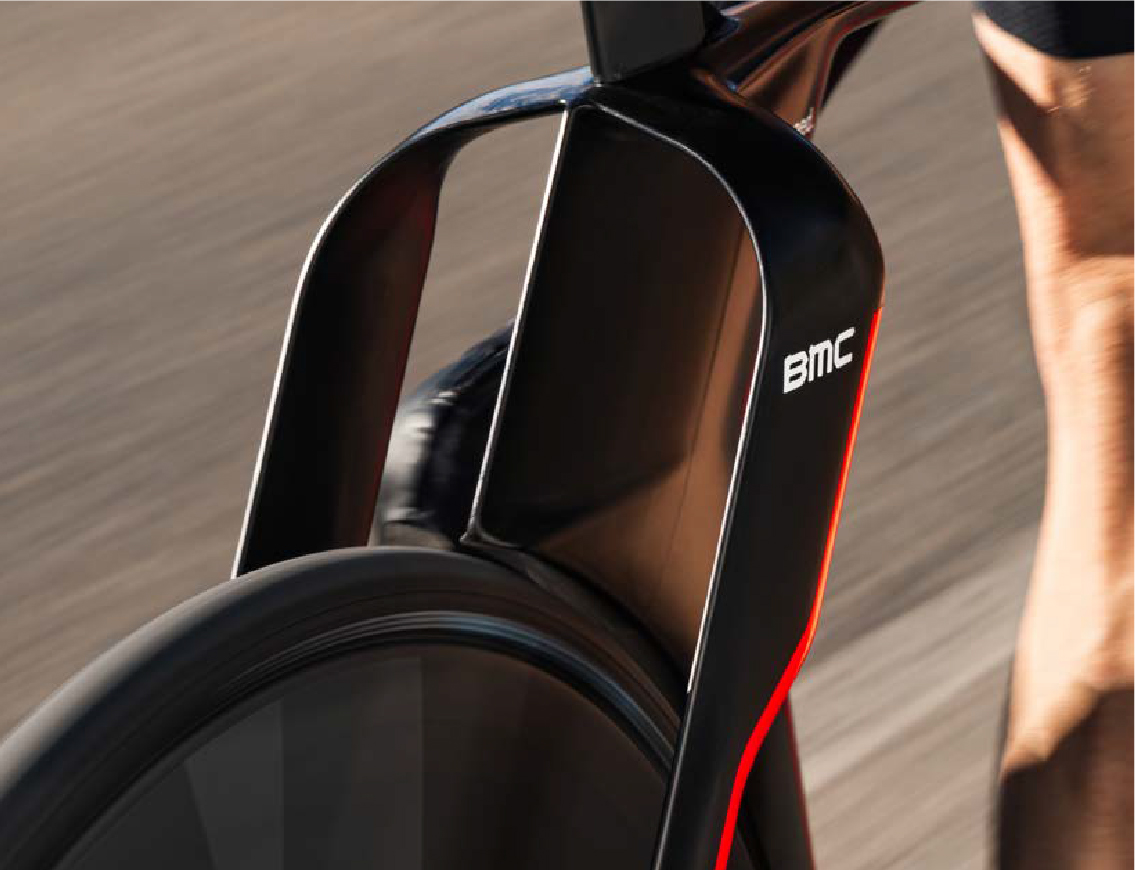

Timemachine Mpc. | Mpc. Premium Carbon | Halo+ bayonet front fork | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
龍頭
Intergrated with fork and base-bar.

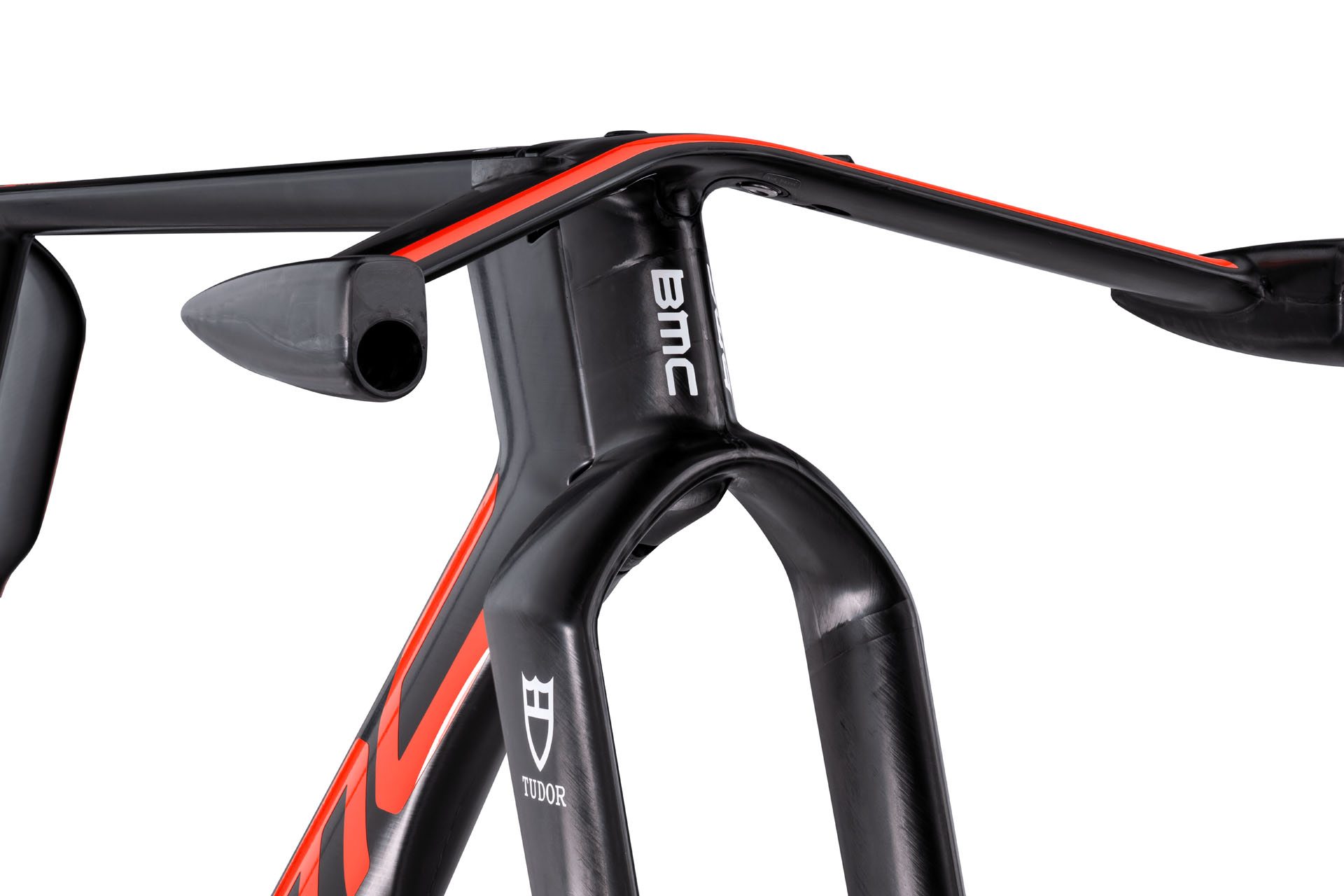

車把手

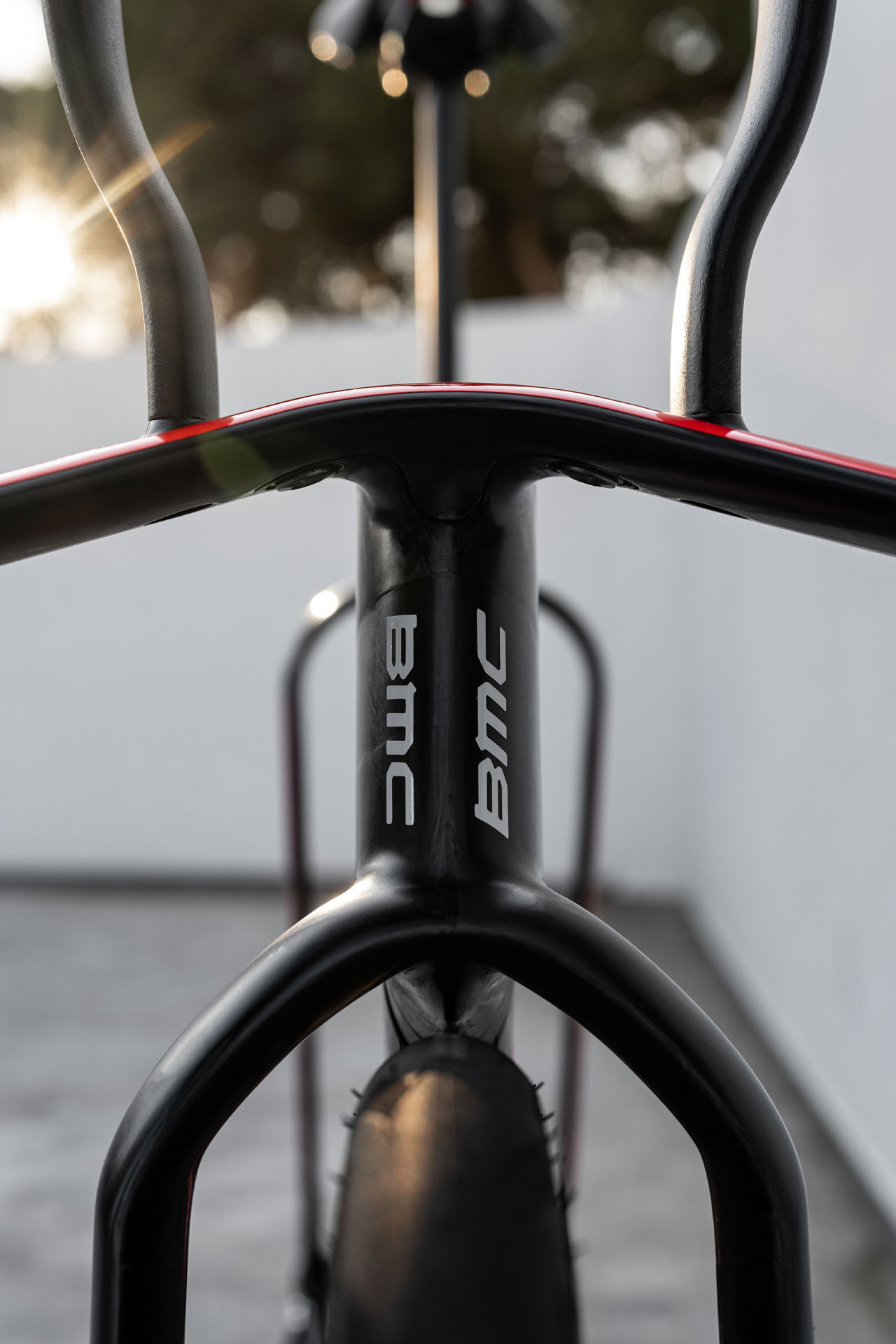

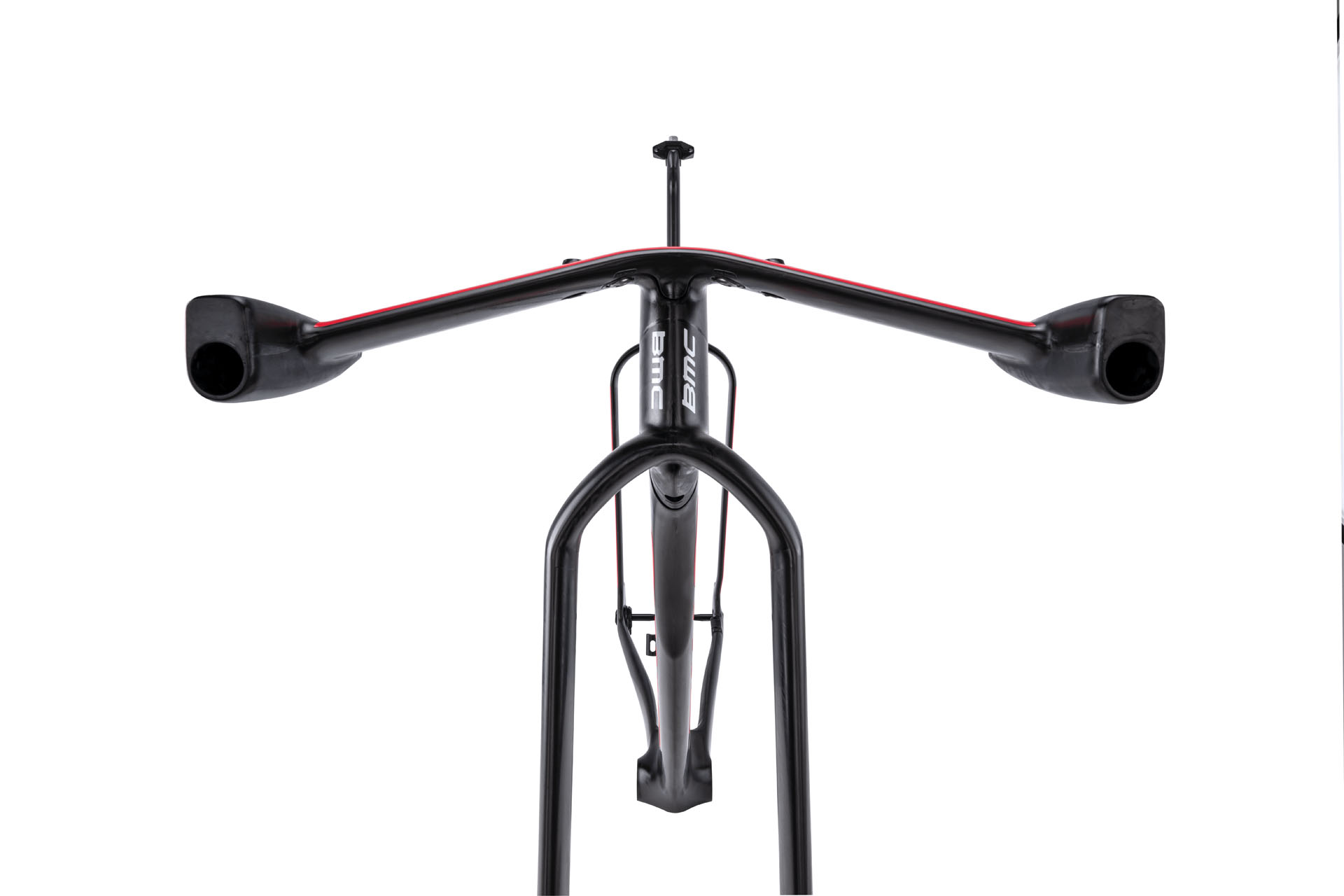

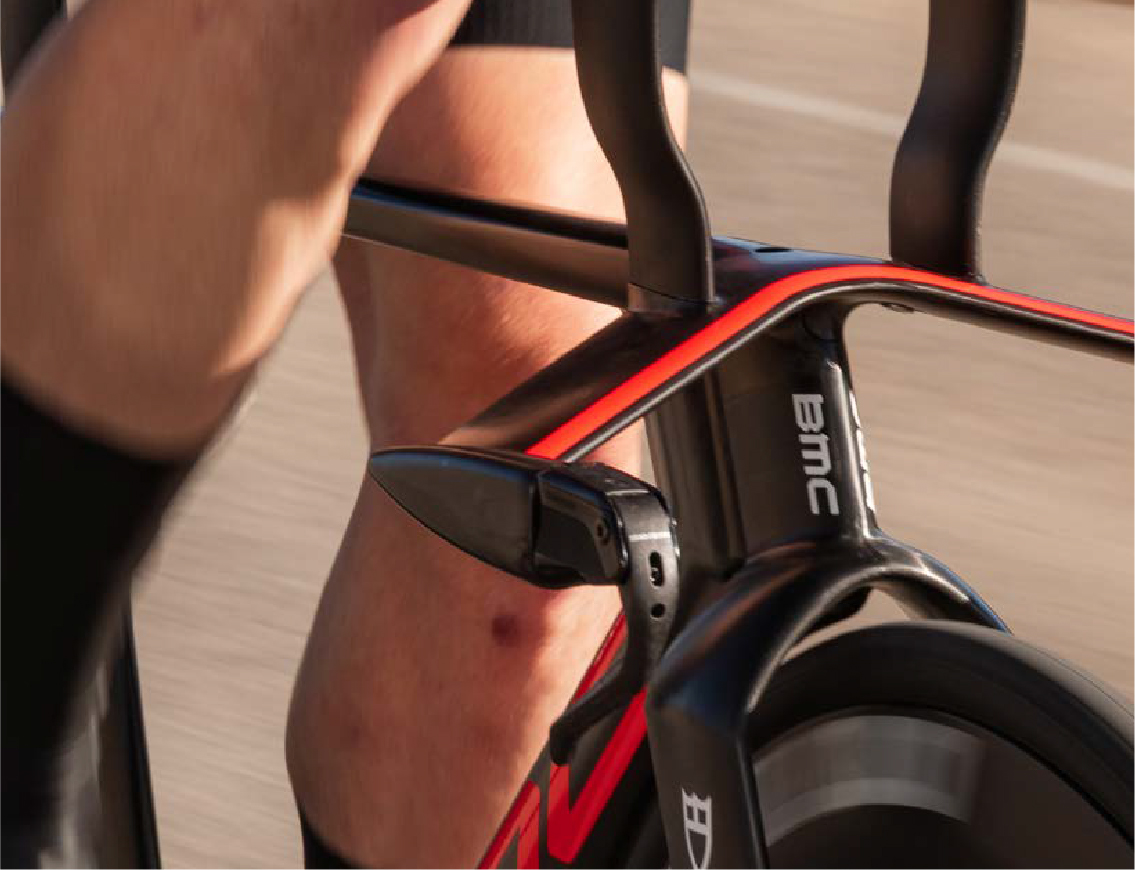

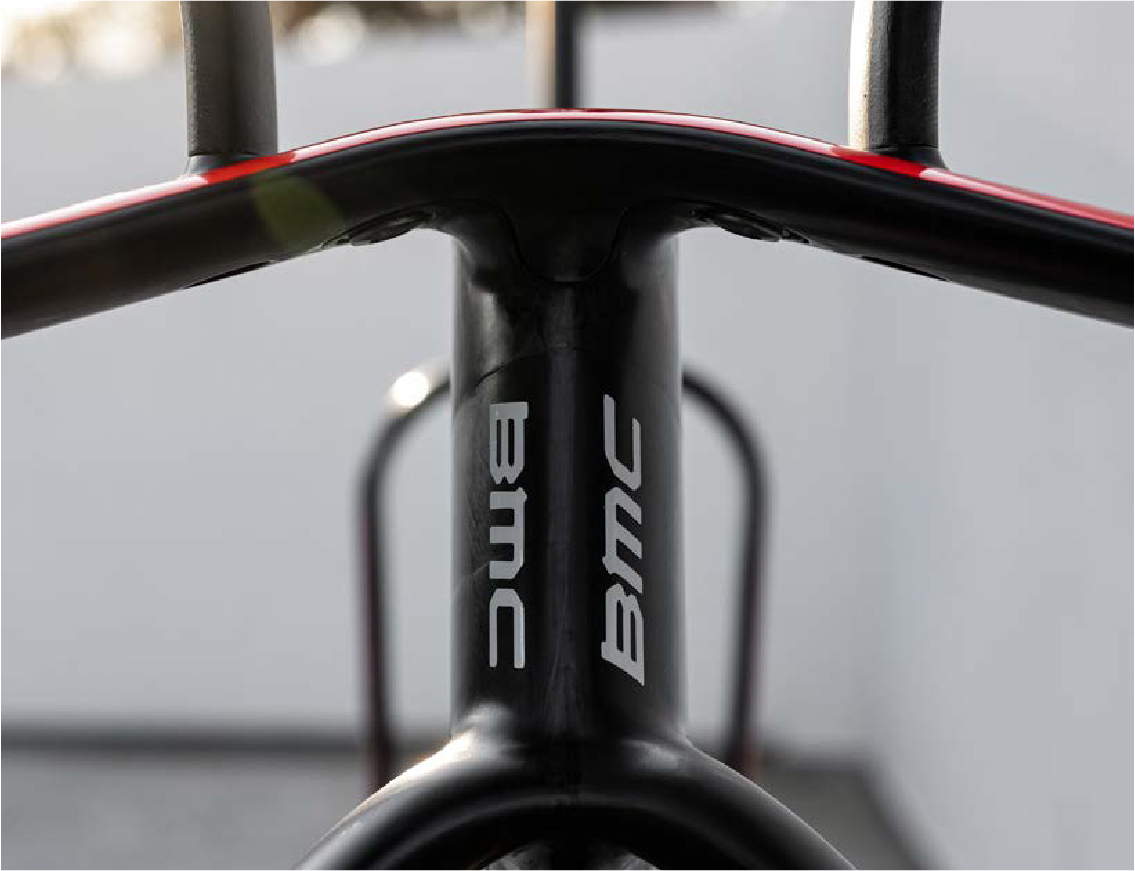

BMC Timemachine Mpc. Flat Cockpit integrated within the Halo+ fork | Compatible with Custom extensions or Profile Design Aeria 1. (available either in EUR or UK brake config. versions)

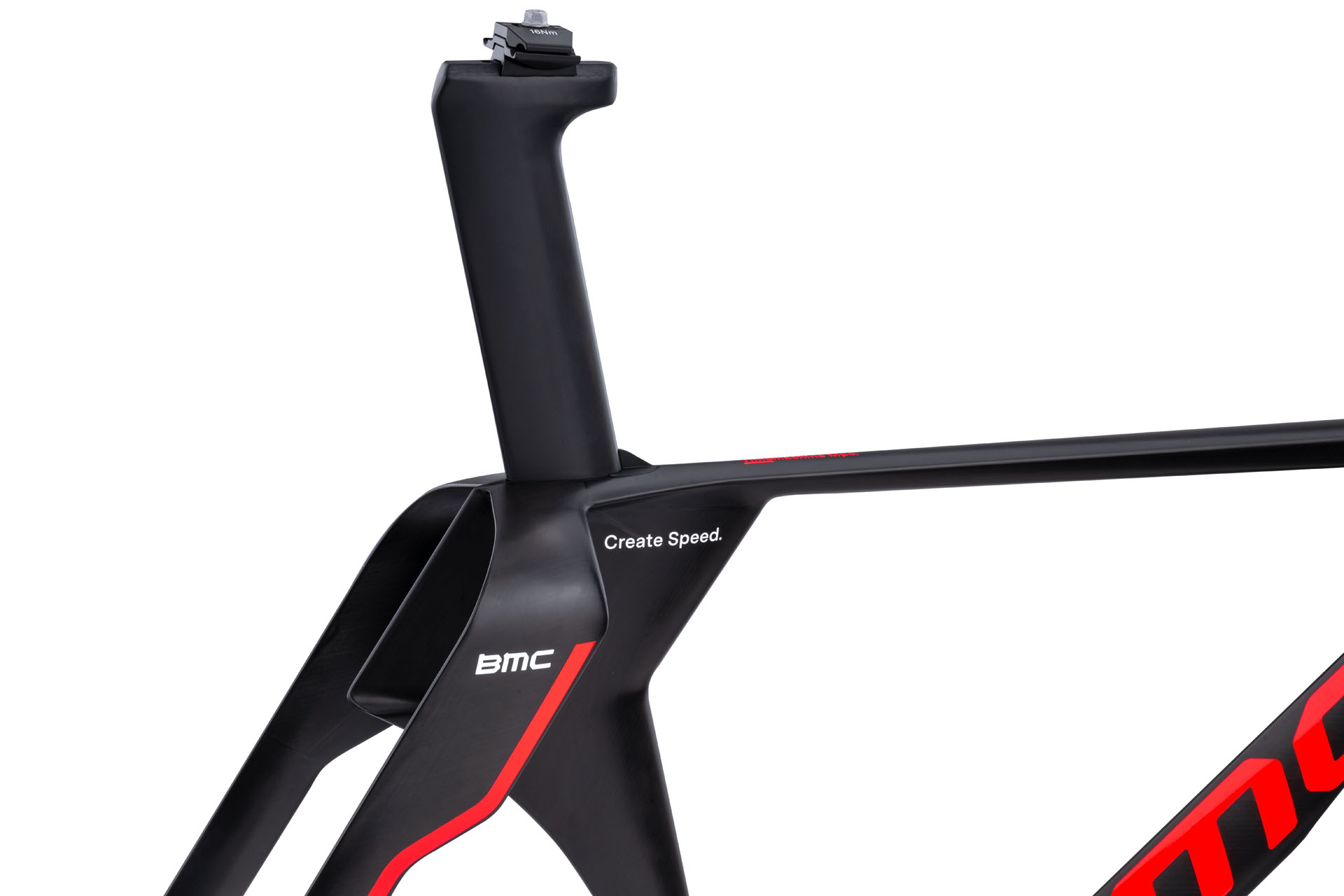

坐管
Timemachine Mpc. | Mpc. Premium Carbon | forward: -5.5mm / -18mm / -30.5mm / -43mm offsets (compatible with optional "standard" version: -18mm / 0mm / +18mm / +36mm offsets)
Geometry
幾何
| Size | S | M-L | |||
| Rider Height cm | 155-185 | 170-210 | |||
| Bar Width | O2O:353mm | C2C:328mm | O2O:353mm | C2C:328mm | |||
| BB Drop | 80 | 80 | |||
| Fork Length | 348 | 348 | |||
| Front Center | 610 | 610 | |||
| Rear Center | 410 | 410 | |||
| Seat Angle | 75.2° | 75.2° | |||
| Seat Tube | 507 | 537 | |||
| Seatpost Length | 420 | 420 | |||
| Seatpost Offset | forward: -5.5mm / -18mm / -30.5mm / -43mm offsets | forward: -5.5mm / -18mm / -30.5mm / -43mm offsets | |||
| Standover Height | 756 | 784 | |||
| Wheelbase | 1012 | 1052 |
